International HX Series – HX520
Key Features
The HX Series HX520 comes with a number of standard, key features.
- Cummins® X15 up to 605 HP / 2,050 lb.-ft. of torque
- Standard all-metal grille with bright surround and bright grille bars
- Available functional dual external air cleaners that deliver heavy-duty filtration, easy maintenance and long service life
- The 3-piece DCPD hood provides excellent visibility, superior strength and impressive durability
- Available bright sun visor, cab modesty panel and bug deflectors provide functional good looks that last
- Available, industry-leading 12.5″ x 0.5″ single frame rail delivers 3.5 million RBM while reducing corrosion
- Standard Huck-Spin frame and crossmember fasteners deliver superior clamping force that lasts
- Available 150,000 lb. capacity center tow pin provides assured strength in extreme recovery scenarios

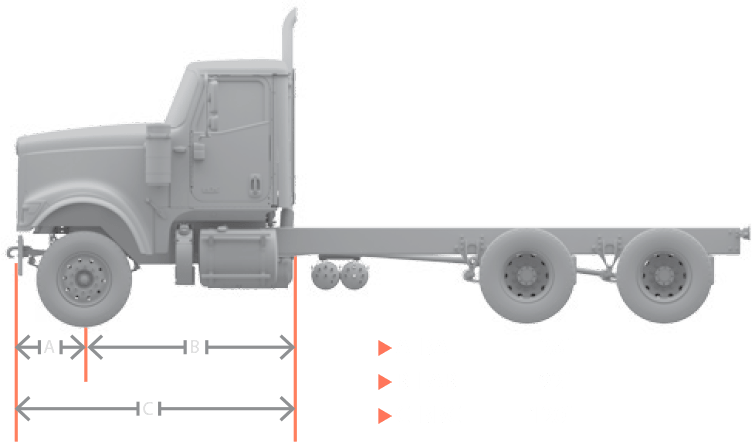

International HX Series HX520 Diagram
Detailed Specifications
View the detailed specifications for the HX Series – HX520.
GVWR
- 52,000 – 90,000 lbs
Hood Design
- Long Square DCPD Hood, 3-piece Outer
Engine
- Cummins X15:
- HP: 430 – 605
- Torque: 1,650 – 2,050 lb.-ft.
Front Suspensions
- Multi-Leaf: 20,000 lbs.
- Parabolic: 12,000 – 20,000 lbs.
Axle Configurations
- 6 x 4
- 8 x 6
Transmission
- Eaton Manual: 8LL (10), 9ALL (11), 13 and 18-speed
- Eaton Automated Manual: 8LL (10), 9ALL (11), 13, and 18-speed UltraShiftPLUS®
- Allison Automatic: EVS, RDS, OFS Series
Rear Axles
- Dana Tandem:
- Single Speed: 40,000 – 52,000 lbs.
- Two Speed: 46,000 lbs.
- Meritor Tandem:
40,000 – 58,000 lbs- Double Reduction: 58,000 – 70,000 lbs
- Tridem: 53,000 lbs
Frames
- Yield: 120,000 PSI
- RBM: 2,037,600 – 4,854,000 in.-lbs.
Rear Suspensions
- Chalmers: 40,000 – 52,000 lbs
- Hendrickson RT: 40,000 – 65,000 lbs, R: 80,000 lbs
- Hendrickson HAULMAAX EX: 40,000 – 46,000 lbs.
- Hendrickson HAS: 40,000 – 46,000 lbs.
- Hendrickson PRIMAAX EX: 46,000 – 52,000 lbs.
- Hendrickson PRIMAAX EX Tridem: 69,000 lbs.
Fuel Tanks
- 60 – 240 Gallons, Single or Dual, Polished or Non-Polished
- LH Mounted Under Cab or Dual Under Cab or Back of Cab
- 24″ or 26″ Diameter
Front Axles
- Meritor: 12,000 – 20,000 lbs.
Exhaust
- Single or Dual Vertical Stacks
- Vertical After Treatment Device: Single Vertical Stack
Available Recovery Devices
- Center Tow Pin: 150,000 lbs.
- Tow Hooks: 80,000 lbs.
- HD Rear Tow Loop: 80,000 lbs.
- HD Rear Tow Hooks: 80,000 lbs.
Braking and Control Systems
- Traction Control
- Electronic Stability Control (ESC)
- Bendix® Wingman® Fusion
