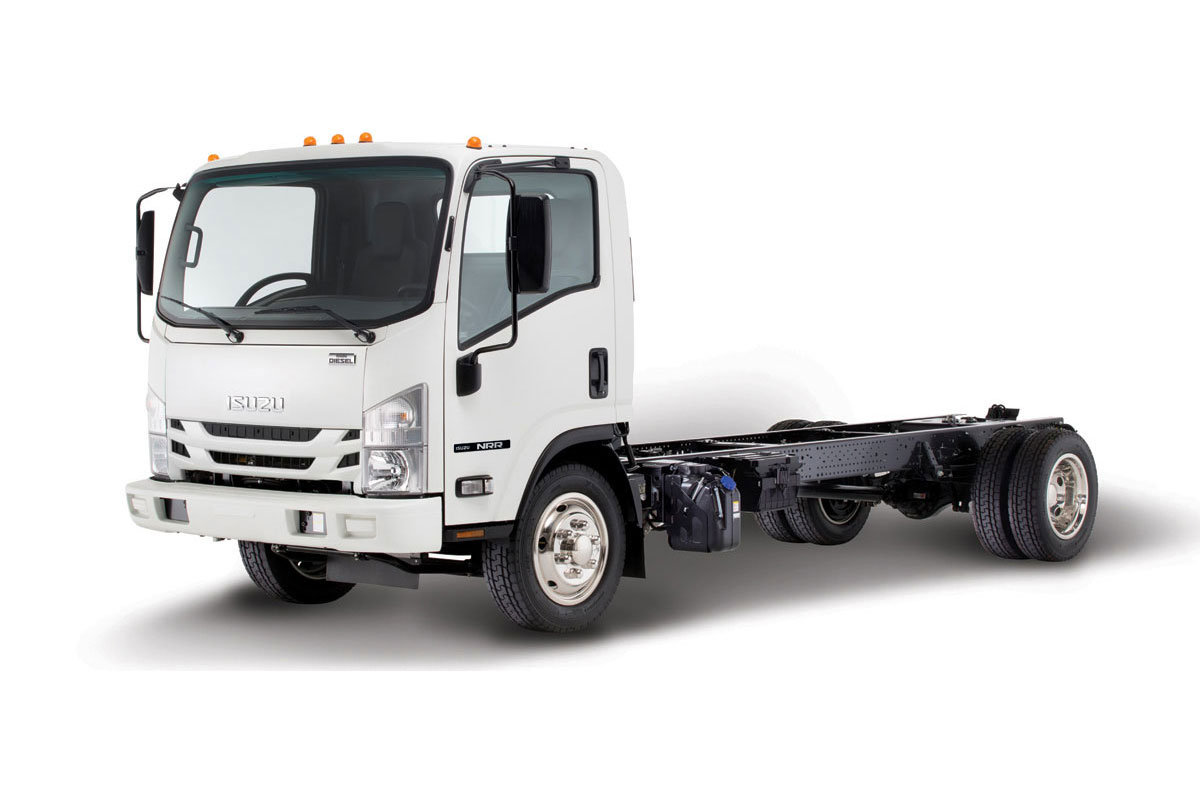

Isuzu NRR Diesel

Key Features

See what makes the Isuzu NRR Diesel stand out from the competition.

GVWR/GCWR: 17,950/23,950 lbs.
Class: 5
Body/Payload Allowance: 10,680-10,748 lbs.
Engine: 5.2-liter
Cab: Crew cab
Body Application: Up to 16 ft.

Isuzu NRR Diesel Diagram

Wheelbase (in.)	Cab to Axle (in.)	Cab to End of Frame (in.)	Back of Cab (in.)	Overall Length (in.)	Body Length (ft.)	Overall Width (in.)	Axle Width (ft.)	Overall Height (in.)
109.0	86.5	129.6	7.7	200.5	10-12	81.3	65.6	92.4
132.5	110.0	153.1	7.7	224.0	14	81.3	65.6	92.4
150.0	127.5	170.6	7.7	241.5	16-18	81.3	65.6	92.4
176.0	153.5	196.6	7.7	267.5	18-20	81.3	65.6	92.4
200.0	177.5	220.6	7.7	291.5	22	81.3	62.6	92.4
212.0	189.5	232.6	7.7	303.5	24	81.3	65.6	92.4

Detailed Specifications

View the detailed specifications for the Isuzu NRR Diesel.

GVWR/GCWR

19,500/25,500 lbs.

Frame

Section Modulus: 7.20in³
Resistance Bending Moment: 316,800 lb.-ft./in.

SERVICE BRAKES

Front/Rear: Vacuum/Hydraulic with 4-Channel ABS Disc/Drum

Fuel Tank

Standard: 30 gal. in-frame
Optional: 33 gal. side mount (176” WB Only)

BODY/PAYLOAD ALLOWANCE

12,294-12,875 lbs.

GAWR

Front: 7,275 lbs.
Rear: 13,660 lbs.

TRANSMISSION

Aisin A465 6-speed auto. with double overdrive and lock-up 2nd-6th gears

Engine

Isuzu 4HK1-TC turbocharged intercooled diesel
Displacement: 5.2L (317 in.3 )
Engine Power: 215 hp @ 2,500 rpm
Engine Torque: 452 lb.-ft. @ 1,850 rpm

FRONT AXLE CAPACITY

7,275 lbs

LIMITED SLIP DIFFERENTIAL

Optional

ALTERNATOR

140-amp

BATTERIES

2 Maintenance-Free 750-CCA

FUEL/WATER SEPARATOR

Dual fuel filter with dash mounted indicator light

SUSPENSION F/R SPRINGS

Tapered/Multi-Leaf
Capacity: 8,440/14,550 lbs..

TIRES LRR (Low Rolling Resistance)

225/70R19.5F (12-pr) Standard

STEERING

Integral Hydraulic Power

STEERING COLUMN

Tilt and Telescopic
