Isuzu F-Series – FTR Diesel

Key Features

See what makes the F-SERIES FTR Diesel stand out from the competition.

GVWR: 25,950 lbs.
Class: 6
Engine: 5.2-liter
Cab: Standard
Body Application: 16 to 30 ft.

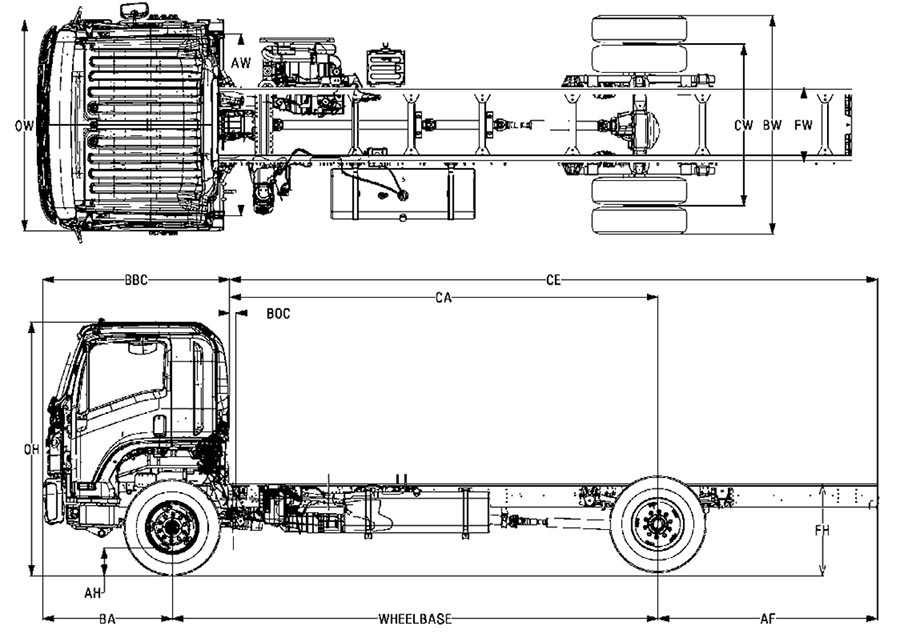

Isuzu FTR Diagram

Detailed Specifications

View the detailed specifications for the Isuzu F-Series FTR Diesel.

GVWR/GCWR

25,950/30,000 lbs.

SERVICE BRAKES

Full Air Dual Circuit with ABS
Front/Rear: S-CAM Drum Automatic Adjust

Fuel Tank

50 or 100 Gal. LH side mount based on wheelbase

Oil Level Indicator

Dash-mounted oil level check switch and light

BODY/PAYLOAD ALLOWANCE

14,641-15,690 lbs.

GAWR

Front: 12,000 lbs.
Rear: 119,000 lbs.

TRANSMISSION

Allison 2550 RDS 6-speed Automatic

Engine

Isuzu 4HK1-TC turbocharged intercooled diesel
Displacement: 5.2L (317 in.3)
Engine Power: 215 hp @ 2,500 rpm
Engine Torque: 520 lb.-ft. @ 1,600 rpm

FRONT AXLE CAPACITY

12,000 lbs.

ALTERNATOR

140-amp

BATTERIES

2 Maintenance-Free Group 31 750-CCA

FUEL/WATER SEPARATOR

Dual fuel filter with dash mounted indicator light

SUSPENSION F/R SPRINGS

Tapered/Multi-Leaf
Capacity: 12,000/21,000 lbs

TIRES LRR (Low Rolling Resistance)

11R22.5 (14-pr) Standard

STEERING

Integral Hydraulic Power

STEERING COLUMN

Tilt and Telescopic
